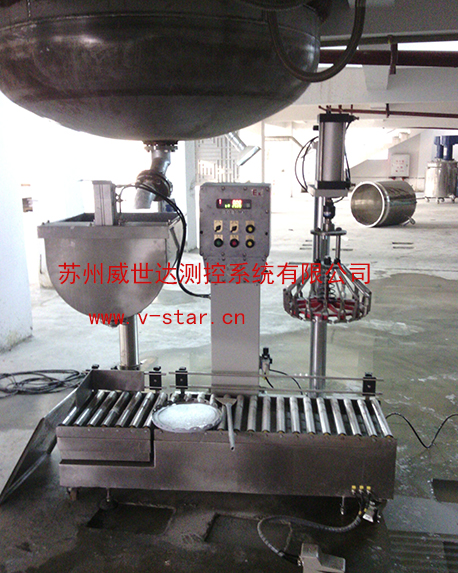

Installation site picture of 30kg coating filling machine
The picture shows the installation site of V5-30DEY filling machine in a company in Guangdong.The company specializes in the production of vacuum electroplating UV coating, plastic spray UV coating, metal paint UV finish, water plating UV finish, plastic machine case paint,etc.Vstar company provides the automatic batching system and filling system for the whole factory.The V5-30DEY coating filling machine is installed at the bottom of the hopper of the reaction kettle. Connect the outlet pipeline at the bottom of the reaction kettle to the scale bucket of the coating filling machine. Place the scale body of the filling machine horizontal, adjust each foot to ensure balance.
When filling the coating for the first time, set the weight of the coating to be filled first, the next time when filling directly press the [Start] button to fill.
Working procedure:
align with the drum manually→press[Start] button →the nozzle inserts into the drum automatically →auto-tare →auto double-speed filling→nozzle auto lifts when filling completed→capping manually →error detection display →remove the drum manually
Related information about coating filling machine: Explosion-proof coating filling machine
